Multi Dermascope MDS 1000

• Measure skin hydration. The display shows the results: very dry, dry or sufficiently hydrated skin.
• Assess oil (sebum) content on skin and hair. The display shows the results: low oil, normal and oily.
• Measure skin’s elastic properties (biological skin age) by suction (ability of the skin to resist/firmness versus its ability to return to the original position). The result is displayed in % and a chart helps to relate the measurement to the person's age.
• Analyse skin pigmentation and the recommend of the suitable sun protection factor (SPF) for sun exposure.

• Visioscope^® AP 35 skin camera with parallel and cross polarized light: parallel polarized light shows the skin surface structure and cross polarized light shows the skin in depth (e.g. pigmentation, blood vessels, etc.). Simply give the camera button a short press to change the illumination. Pressing the button longer freezes the image on the built-in video-monitor to be discussed with the customer. The camera is also suitable to monitor hair and scalp (hair damage, dandruff, etc.).

• Special foils Sebufix^® F 16 and Corneofix^® F 20 in convenient dispensers are used with the camera to perform quantitative analysis of sebum production and desquamation (chart interprets the images visible on the monitor). The Sebufix^® mounted on the Visioscope^® camera shows the sebum production in real time on the monitor.

• Attractive design
• Ideal tool for all who want to do a comprehensive skin analysis without using a computer.
• Quick and easy measurements combined with impressive close up images.
• Your customer can easily understand the measurement results directly interpreted on the device.
• Give out product recommendation for skin care, hair care, sun care, special products and treatments. We recommend to make "skin passports" in which you can fill in the results and the recommended products. Customer loyalty guaranteed!
• The MDS 1000 is a perfect tool for seasonal promotion actions.
• Ask for special transportation suitcases (trolley style).

Device: Dimensions: 37 x 28 x 22 cm, Weight: approx. 2.7 kg (without probes), External power supply: 100-240 VAC/12VDC,

Moisture: Measurement: capacitance, Time: 1 second, Scale 0-99, Frequency: 0.9-1.2 MHz, Dimension: 11 cm, Weight: 41 g, Cable length: 1.3 m

Sebum: Measurement: photometrical, Time: 10 seconds, Scale 0-99, Dimensions: 8.5 x 11.3 x 2.3 cm, Weight: 65 g, Number of measurement: approx. 400-450 (if the trigger is only pulled down slowly for the next free measuring section). When tape is consumed, the whole cartridge has to be renewed.

Elasticity: Measurement: suction with 400 mbar pressure, Time: 6 seconds (3 seconds suction and 3 seconds relaxation), Scale 0-99, Probe opening: 2 mm Ø, Dimensions: 13 cm x Ø 2.4 cm, Weight: 95 g, Cable length: 1.3 m

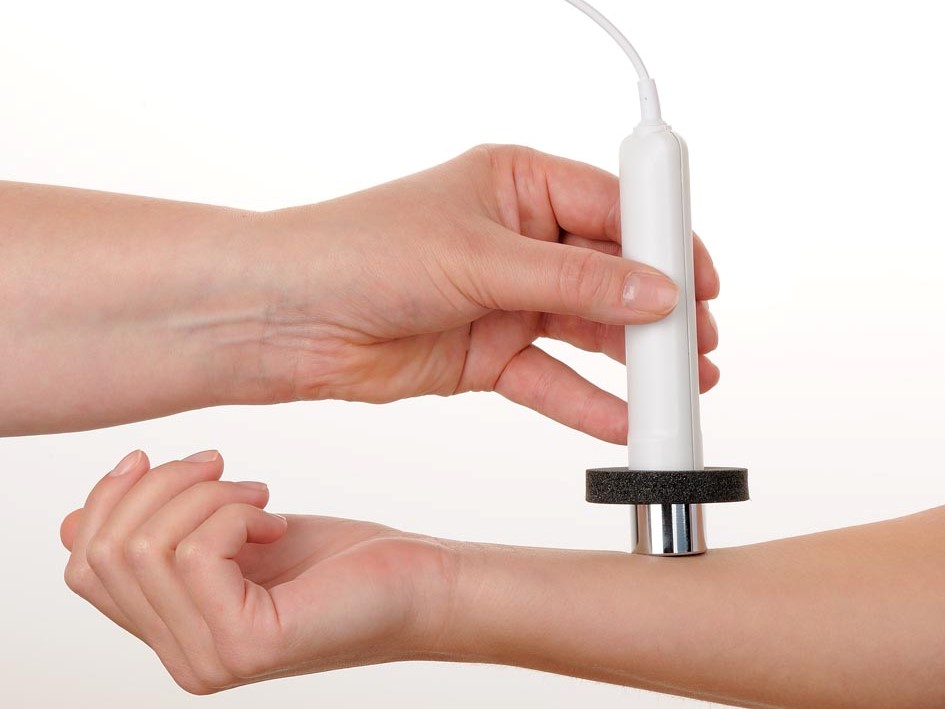

Melanin/Pigmentation: Measurement: absorption/reflection, nominal wavelengths: 3 colour measuring system green: λ peak = 568 nm, red: λ peak = 660 nm, infrared: λ peak = 880 nm, time: 1 second, Scale 0-99, Dimensions: 13 cm x Ø 2.4 cm, Weight: 85 g, Cable length: 1.3 m

Visioscope^® AP 35 analogue skin camera: Power supply: 5 V DC (via main device), Dimensions: 12 x 5.5 x 5.5 cm, Weight: 220 g, Cable length: approx. 1.5 m, Light source: white LED →multi-function camera button switches the polarization mode (short press) and freezes the image (long press), Image size: 6 x 8 mm → approx. 10 mm diagonal, Video output mode: PAL

Monitor: Dimensions: approx. 17 x 17 x 18. 6" → approx. 144 mm diagonal → 14.4 x zoom

Sebufix^® F 16: Milky foil to determine the sebum content qualitatively, Dimensions: 1.7 x 1.7 cm, Thickness: 0.2 mm

Corneofix^® F 20: Transparent foil to assess desquamation, Dimensions: 2.00 x 1.95 cm, Thickness: 0.1 mm

Foils are completely harmless for the skin.
